De-burring Tool Holder

This little gadget I came up with some years ago to de-burr cases after trimming them to length, I had injured my wrist and after surgery that repetitive motion would be very fatiguing. I wanted to adapt it to power and do it inexpensively with a minimal amount of tools, at the time I was doing a small plumbing job with plastic pipe in my basement and that is where the parts came from. It just so happens that the de-burr tool fits inside a ½ “straight connector without any modifications, it is a wedge type fit so no clamping is necessary.

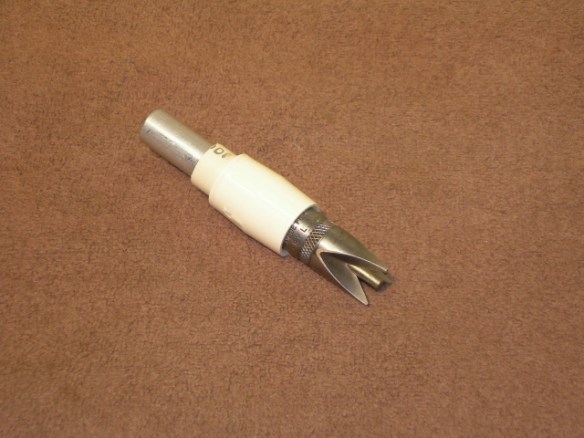

Power holder & De-burr Tool

Power holder & De-burr Tool



I have made several of these over the years, the one pictured on the right here is not the first one, that one I used a ½ “wood dowel but this one has a ½ “aluminum shaft. I first used them in my drill press but then adapted one to a battery drill for portability. The shaft diameter can be changed to suit your needs with a minimum amount of tools. On the left are the parts needed to construct the holder, I included a ½ inch bolt that can also be used by cutting off the head.

Parts needed for holder

Parts needed for holder

Power holder

Power holder





Power holder

Power holder

In this photo I now have adapted one to my case lathe, I found this at a local gun show for $60, it now does the chores that I always did by hand or with my drill press. I have adapted a primer pocket uniformer, case de-burr, a chuck for misc. things such as brushes, flash hole de-burr and the Lee universal chuck for turning brass.



Case Lathe

Case Lathe

 I hope this is useful information for anyone wishing to accomplish the same task; I will in the future post more tips and gadgets from the past and present, many thanks for looking.
